High Temperature Spiral Rod Type Sic Heater Silicon Carbide Heating Element with Max. Service Temp 1500℃ for Furnace

Name: High Temperature Spiral Rod Type Sic Heater Silicon Carbide Heating Element with Max Service Temp 1500 for Furnace
Brand: KEGU
Price: 200 USD

Buy cheap High Temperature Spiral Rod Type Sic Heater Silicon Carbide Heating Element with Max. Service Temp 1500℃ for Furnace product

Material : SiC

Composition:SiC : ＞85%

Color : Black

Density : 2.5~2.6g/cm³

Max. Service Temp : 1380℃

Flexural Strength : 70-90 MPa

Size : Customized

Heat Conduction : 23.26 W/(m·℃)

Resistivity : 1000～2000 Ω·mm2/m

Tensile Strength : 39.2～49 MPa

Max. Service Temp. : 1500℃

Linear Thermal Expansion Coefficient (20-1500℃) : 5×10⁻⁶/℃

Electrical Resistivity : 1000~2000Ω·mm²/m

Model Number : Customizable

Brand Name : KEGU

Place of Origin : China

Price : 200-500 yuan/kg

Payment Terms : L/C,D/A,D/P,T/T,,

Supply Ability : 2,000 pcs/month

Packaging Details : Strong wooden box for Global shipping

Contact Now

U W I High Temperature Spiral Rod Type SiC Heater

Electric spiral silicon carbide heating elements are non-metallic high temperature electric heating components manufactured from selected high-purity green silicon carbide. These elements are formed into blanks and undergo silicon crystallization at temperatures up to 2400°C. Designed for furnace applications operating between 600°C to 1600°C, they are widely used in glass, chemical, and electronic material heating applications.

Product Specifications

Available in various configurations to meet market demands:

Diameter range: 8mm to 60mm
Length range: 300mm to 450mm

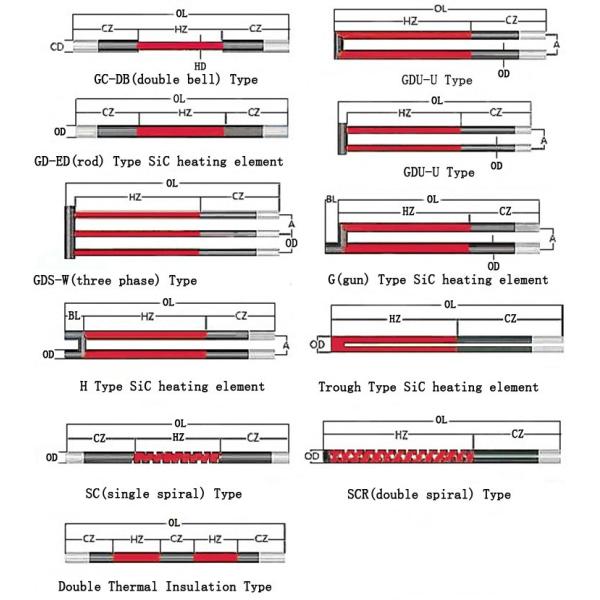

Specialized designs: equal diameter, groove-shaped, U-shaped, and gun-shaped configurations

Key Features and Advantages

1	Maximum working temperature of 1600°C
2	Rapid temperature rise with stable performance and extended service life
3	Noise-free operation with zero air pollution
4	Easy installation and minimal maintenance requirements
