Silicon Nitride Riser Tube High Temperature Resistant Ceramic Tube For Aluminum Casting

Name: Silicon Nitride Riser Tube High Temperature Resistant Ceramic Tube For Aluminum Casting
Brand: KEGU
Price: 200 USD

Buy cheap Silicon Nitride Riser Tube High Temperature Resistant Ceramic Tube For Aluminum Casting product

Brand Name : KEGU

Place of Origin : China

Price : 200-500 yuan/kg

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 2,000 pcs/month

Packaging Details : Strong wooden box for Global shipping

Model Number : Customizable

Material : Silicon Nitride

Composition:SiC : ＞85%

Color : Black

Density : 3.20-3.26g/cm3

Max. Service Temp : 1450℃

Flexural Strength : 250MPa

Sample : Customizable

Chemical Stability : High

Apparent Porosity : 0-0.1%

Elastic Modulus : 300-320GPa

Compression Strength : >1500MPa

Vickers Hardness(HV0.5) : 15-16GPa

Thermal Conductivity : 20-25W/(m.k)

Specific Resistivity : 10^14Ω·cm

Contact Now

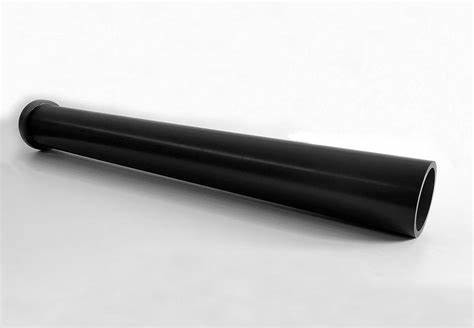

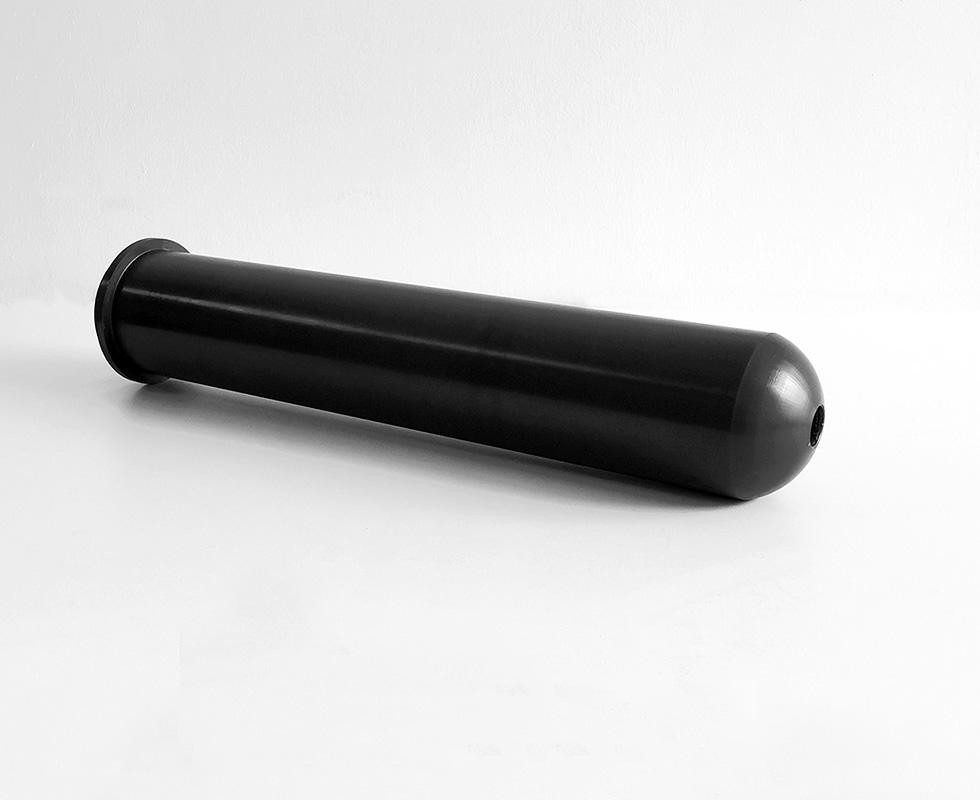

Silicon Nitride Riser Tube - High-Temperature Resistant Ceramic Tube for Aluminum Casting

Silicon Nitride Riser Tube High Temperature Resistant Ceramic Tube For Aluminum Casting

Description:

The silicon nitride riser tube is manufactured through isostatic pressing and gas pressure sintering processes, offering exceptional density and high-temperature mechanical strength. Designed specifically for aluminum casting, its unique material properties extend service life by over 10 times compared to conventional tubes, while minimizing air leakage and slagging. This results in higher-quality castings and reduced operational costs.

Typical application:

1. Low-Pressure/Gravity Casting: Aluminum wheels, engine blocks

2. Precision Casting: Aerospace components, heat sinks

3. Continuous Casting: Slabs, rods

Feature:

1. Excellent Thermal Shock Resistance

2. High-Temperature Resistance & Low Thermal Expansion

3. Corrosion Resistance & Non-Wetting

4. Long Lifespan & Easy Maintenance

The physical properties of Silicon Nitride Riser Tube:

Item	Unit	Result
Density	g/cm³	3.20-3.26
Apparent Porosity	%	0-0.1
Elastic Modulus	GPa	300-320
Compression Strength	MPa	>1500
Vickers Hardness(HV0.5)	GPa	15-16
Fracture Toughness	MPa.m^1/2	>0.8
Bending Strength	MPa	>700
Poisson's Ratio	-	0.25
Linear Expansion Coefficient	x10^-6/℃	3.1-3.3
Weibull Modulus	-	11-13
Thermal Conductivity	W/(m.k)	20-25
Specific Resistivity	Ω	10¹⁴

Available product sizes:

Size	Max. Diameter	Thickness	Max. Length
Unit(mm)	430	10-15	1350
